    VACOPED

    Brand: OPED
    TGA Approved: 290566

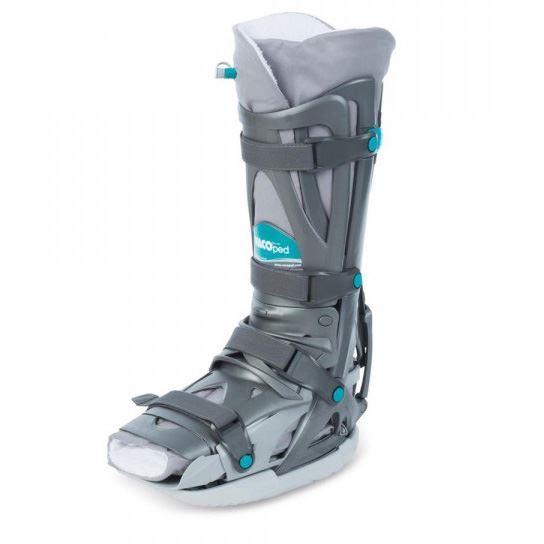

    The OPED VACOped is a cast-stable function orthosis for the immobilisation of the foot and ankle. With the ability to provide a range of motion, the VACOped allows for greater freedom of movement than a plaster cast and has been proven to shorten a patient’s recovery process.
    SKU: WSS042
    *
    *
    *
    Code Size Unit of Measure Measurement
    Code: VPED-S Size: Small Unit of Measure: EA Measurement: US Shoe: 3.5-7.5 (Male), 4.5-8.5 (Female)
    Code: VPED-M Size: Medium Unit of Measure: EA Measurement: US Shoe: 7.5-11.5 (Male), 8.5-12.5 (Female)
    Code: VPED-L Size: Large Unit of Measure: EA Measurement: US Shoe: 11.5-15 (Male), 12.5-16 (Female)

    Endorsed by the Australian Physiotherapy Association.

    The OPED VACOped is a cast-stable function orthosis for the immobilisation of the foot and ankle. With the ability to provide a range of motion, the VACOped allows for greater freedom of movement than a plaster cast and has been proven to shorten a patient’s recovery process.

    OPED's patented vacuum technology is the modern alternative to plaster and is integral to the VACO range of products. A cushion filled with thousands of styrofoam pearls surrounds the injured body part. When air is extracted from the cushion by using a pump, it becomes hard (like a cast), in just a few seconds. Opening the valve and letting airflow inside the cushion causes it to become soft again, allowing for readjustment to the body part.

    This innovative vacuum cushion avoids pressure to the body site and provides stability due to a perfectly shaped orthosis every time.

    Features:

    • All-in-One Product. Cast stable. Replaces back slab, cast and walker
    • Vacuum cushion forms perfectly to individual patient's anatomy and can be adjusted to accommodate swelling and atrophy
    • Option of range of motion (ROM) from -15° to +30°. Shortens recovery time by 3.5 weeks*
    • Adaptable. 3 sizes only (saves storage space)
    • Changeable liners for hygiene and comfort
    • Easy wound inspection simplifies treatment
    • Removable sole for better hygiene
    • Traceability by serial number simplifies logistic processes
    • Radiolucent. Saves time and gives comfort if an x-ray is needed

    Indications:

    • Achilles tendon ruptures
    • Ankle fractures
    • Metatarsal fractures
    • Calcaneus fractures
    • Severe distortions
    • Arthrodesis

    Specify shoe size for sizing.

    Size Mens (US) Womens (US) Euro UK Length of Foot (CM) Forefoot Width (CM) Ankle Circ (CM) Calf Circ (CM)
    Small 3.5 - 7.5 4.5 - 8.5 35 - 40 2.5 - 6.5 22-25cm 10cm 14-29cm 23-39cm
    Medium 6.5 - 11.5 8.5 - 12.5 40 - 45 6.5 - 10.5 25.1-28cm 12cm 22-40cm 35-51cm
    Large 11.5 -15 12.5 - 16 45 - 50 10.5 - 14 28.1-31cm 13cm 30-45cm 40-58cm
    Product Files
    Document Title Description
    ALLIED Summer 2024 Quarterly Overview - The Latest in Physical Therapies, Hand Therapy, Podiatry and Compression. ALLIED Summer 2024
    VACOped IFU Download
    VACOped Application Poster Download
    OPC Health 2023 Core Hospital Brochure Download
    Clinical Study Functional dynamic bracing and functional rehabilitation for ATR Download
    Clinical Study The treatment of a rupture of the Achilles tendon using a dedicated management programme Download
