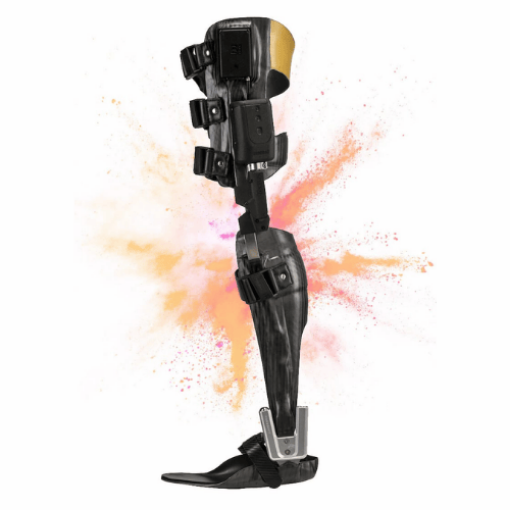

Tectus® Microprocessor Orthosis

Brand: Blatchford

Walk fluidly, walk safely, and walk all day using Tectus®.

Tectus® is a slim, lightweight microprocessor-controlled orthosis*. Using Blatchford's proven, world-renowned microprocessor prosthetic technology, Blatchford have created Tectus®, a lifechanging intelligent orthotic that allows people with impaired mobility, due to partial paralysis in their lower limbs, to walk again. Instead of a locked knee brace, cane or wheelchair, this system provides the freedom to participate in regular daily activities.

Have a Question? Contact Us

See Similar Products

FAQ
Specifications
Documents & Downloads
Video

What is Tectus®?

Tectus® is an orthotic device, that enables people with partial lower limb paralysis to walk more easily, naturally, and comfortably with increased confidence and safety.

Tectus® combines a custom-made Knee, Ankle, Foot Orthosis with the Tectus® knee module to create a microprocessor controlled knee hinged KAFO with swing and stance phase control.

How Does Tectus® Work?

The orthosis provides stability and support to the wearer. The Tectus® device uses its complex system of spring, hydraulic, sensor and microprocessor technology to enable natural walking.

The multiple sensors detect the wearer’s movement and automatically makes adjustments to the hinged knee unit. The hydraulic mechanism provides controlled resistance which ensures the wearer walks safely on different terrains and alters the resistance for stairs and sitting to give the wearer complete control.

The combination of the spring assist feature and the microprocessor-controlled hydraulics allows the wearer to walk further and more easily.

What Conditions Can Tectus® Treat?

Tectus® can be effective in treating wearers with:

Spinal injuries with lower limb paralysis
Neurological conditions with resultant muscle weakness
Orthopaedic injuries with resultant nerve damage

Is Tectus® the Same as Other KAFOs on the Market?

No.

Tectus® is a unique, semi-automatic, microprocessor knee module that incorporates Blatchford’s Performance Response TechnologyTM - a complex system of spring, hydraulic, sensor and microprocessor technology to improve the gait cycle of any Tectus® wearer. This results
in a more natural walking gait, with improved symmetry and more even loading.

What is the User Weight Limit for Tectus®?

Tectus® is designed for adolescents and adults. The minimum user weight is 50kg, Maximum weight 100kg*.

(*including any weight carried)

What is the Battery Life of Tectus®?

Tectus® will last for a full day of average use^.

(^up to 18 hours of continuous charge)

Is Tectus® Waterproof?

The Tectus® module is IP54 rated. Being caught in the rain is not a problem, but the brace is not suitable for showering, paddling or being soaked in water.

How Long Does it Take to Fully Charge Tectus®?

Tectus® takes 2 hours to fully charge from a flat battery.

It is recommended before charging that you lay the Tectus® KAFO down in a horizontal position (on a flat surface or floor), with the knee module facing upwards and with 5 degrees of knee flexion so that it is secure and does not roll over.

Products specifications

Activity Level	All activity levels
User Minimum Weight (kg)	50kg / 110lbs
User Maximum Weight (kg)	100kg / 220lb
Tectus® Module Weight	660g (1lb 7oz)
Battery Type	Rechargeable Ni-MH 950mAh 6V
Warranty	36 months (+ extendable by 36 months)
IP Rating	IP54

Product Files

Document Title	Description
Tectus User Guide		Download
Tectus Evaluation Brace - Instructions for Use		Download
Tectus Data Sheet		Download
ALLIED - Autumn 2025		Download
Tectus Brochure		Download

Key Features

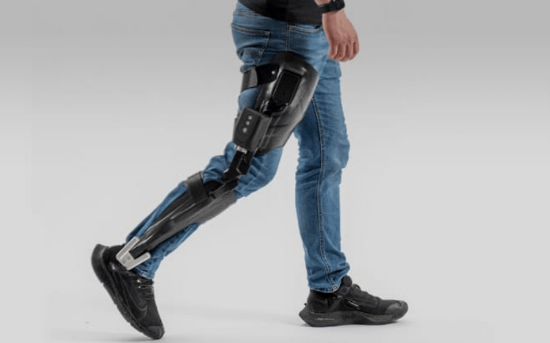

Controlled Stance Release

Sensors inside Tectus® detect the pre-swing thigh angle, movement forward and pressure. These intelligent controls within the microprocessor unit prepare the knee for release into swing phase.

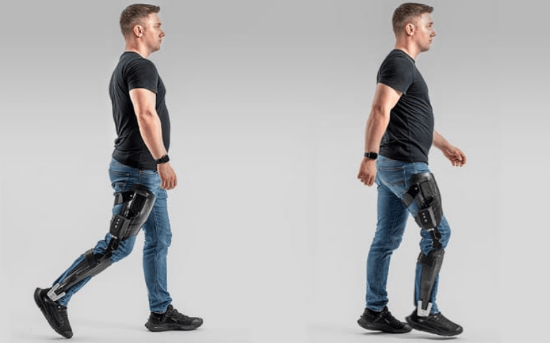

Spring Assist

With unique adjustable control features, Tectus® assists both heel rise dampening and the mid to terminal swing phase knee extension.

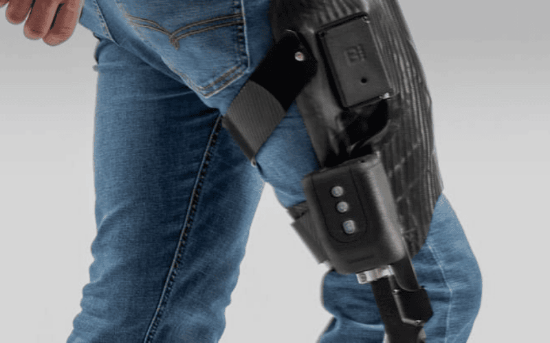

Flexible Configuration Options

The Tectus® microprocessor module has a separate battery power unit that can be positioned to fit the unique thigh shape and size or each individual patient.

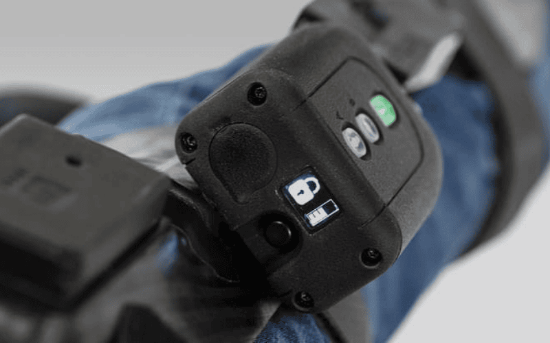

Manual Lock & Free Mode Options

Manual lock prevents knee flexion, giving complete confidence in situations where prolonged periods of standing are required. Free Mode on the other hand, activates automatically after sitting in a resting position for two seconds.

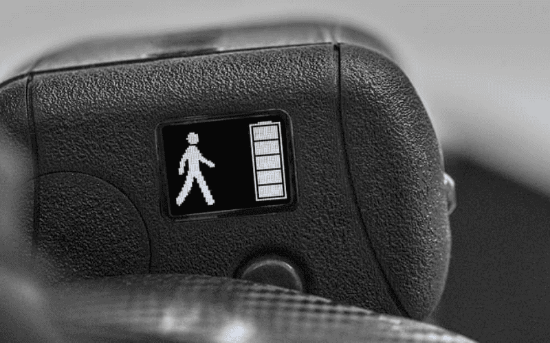

Simple & Easy to Read Digital Display

A discreet digital display provides easy access to the device's the five activity modes, allowing Tectus® wearers to view battery status, step count and safety warnings all at a glance.
