MOTION ARM

Brand: Fillauer

The Motion Arm is a sleek, low-profile hybrid elbow designed for use with electric terminal devices and passive or electric wrist rotators. The Motion Arm accommodates higher loads, supporting up to 50 ft·lb in the locked position and has enough battery power to easily last all day long. It is also Pattern Recognition Compatible with the COAPT Complete Control™.

Have a Question? Contact Us

See Similar Products

Specifications
Documents & Downloads

Products specifications

Operating Tempature	0°C - 44°C
Transport Temperature	-18°C - 60°C
Load Limit (Elbow Locked)	50 ft-lbs/65 Nm, All Directions (+/- 10%)
Range of Motion	0° - 145°
Humeral Rotation	360°, Adjustable Friction Resistance
Product Weight	771g
Weight with Lamination Collar / Friction Band	816g
Build Height	45mm
Maximum Length	305mm
Standard Length	254mm
Minimum Length	203mm
Warranty	24 Months (Additional 24 Months Available)

Product Files

Document Title	Description
Motion Arm Brochure		Download

Key Features

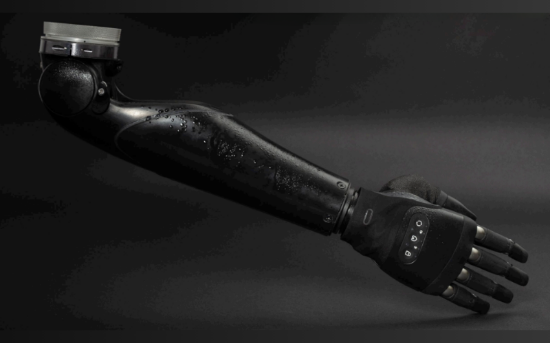

Waterproof

The input manifold utilizes industry standard connections, all of which are IP67 waterproof/dustproof. It’s the ultimate waterproof combo when paired with an ETD2, TASKA hand, or other waterproof TD.

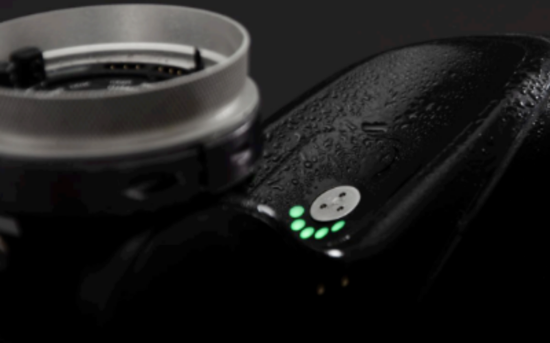

Longer Battery Life

The Motion Arm houses a high-capacity 3,000 mA·h internal battery which is adequate for a full day’s charge.

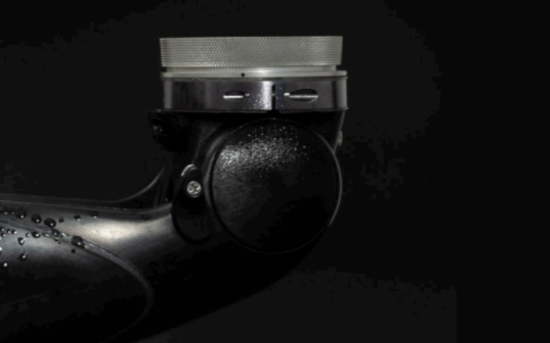

Manual or Electric Locking Elbow

Manual Lock Motion Arm is controlled via Spectra® lock/unlock cable. For the Electric Lock version, it can be controlled via a switch or three EMG trigger options that are adjustable via Bluetooth in the Motion Arm UI app.
